Ubiquiti EdgeSwitch 24 Lite

Name: Ubiquiti EdgeSwitch 24 Lite
Brand: Ubiquiti
Availability: InStock

EdgeSwitch was the switch side of Ubiquiti's EdgeMAX line, run from its own web UI and command line with no controller. The ES-24-Lite came out in 2015 as the 24-port model without PoE. It's a 1U switch with 24 gigabit ports, two 1G SFP ports, an internal 25 W supply and a DC input that can act as a hot spare. You get VLANs, private VLANs, MSTP, link aggregation, 802.1X, ACLs and DHCP snooping, all through an industry-standard CLI over the RJ45 console, SSH or Telnet. That CLI makes it a better fit for CCNA practice than a UniFi switch with the same ports. Routing is static only, with 16 routes on 15 interfaces, so there's no OSPF or RIP. The ES-24-250W and ES-24-500W are its PoE siblings. Ubiquiti still publishes EdgeSwitch firmware, with 1.12.2 out in June 2026.

ES-24-Lite, this model (no PoE)ES-24-250W and ES-24-500W, the EdgeSwitch 24 PoE modelsES-48-Lite, 48 ports plus two SFP+ and two SFPUS-24, the UniFi switch with the same port layout, managed from a controller

Spec at a glance

Maker: Ubiquiti
Type: Switch
Launched: 2015
Part number: ES-24-Lite
Ports: 24 × gigabit RJ45, 2 × 1G SFP, 1 × RJ45 serial console
Switching: Layer 2 plus static routing (16 routes); 52 Gbps switching capacity, 38.69 Mpps
Software: EdgeSwitch firmware, web UI and CLI over console, SSH or Telnet
Power: Internal 25 W AC supply, plus a 16 to 25 V DC input; 25 W max
Size: 1U rack or wall, 443 × 221 × 43 mm, 2.51 kg without brackets
Also listed as: ES-24-Lite, ES-24-LITE, ES24 Lite, EdgeSwitch 24 Lite, EdgeSwitch Lite 24
Typical eBay ask (Oct 15, 2026): $85–$200

Lab check

License, support, noise and ports

License and feature set: There's no license. Every feature in the EdgeSwitch firmware is there out of the box, and nothing is tied to the previous owner except their config and password, which a reset clears.
Software and support: It runs EdgeSwitch firmware, with a web UI and an industry-standard CLI. Ubiquiti still publishes it, with 1.12.2 out in June 2026 carrying security fixes. Since 1.8.2 each release also comes in a lite build that caps VLANs at 255, so check which build you load.
Fans and power: Ubiquiti's datasheet gives no fan count or noise figure for it. Maximum AC draw is 25 W from the internal supply.
Ports and optics: 24 gigabit RJ45 ports and two hot-swappable 1G SFP ports, with no SFP+. SFP modules aren't in the box. The 16 to 25 V DC input takes a separate supply as a hot spare, and Ubiquiti says the switch moves to it without interrupting operation if the internal supply fails.
Reset and console: With it fully booted, hold reset for about 15 seconds until the system LED flashes blue for two seconds. It comes back on DHCP, falls back to 192.168.1.2 if there's no server, and takes ubnt/ubnt. The RJ45 console needs a rollover cable at 115200 8N1.

Should come with it

AC power cord (supplied)
Rack-mount brackets, screws and cage nuts (supplied)
SFP modules (not supplied)

Check the listing photos against this list, and ask the seller about anything you can’t see. A missing piece should come off the price.

What to check

Ubiquiti's release notes warn that the lite firmware build drops VLANs above 255, and a config with more loses them on upgrade. EdgeSwitch 1.12.2 also doesn't work with the password generator in UISP versions older than 2.4.126.

01Model: Check the label in the photos says ES-24-Lite. ES-24-250W and ES-24-500W are the PoE models.
02Firmware: Ask which EdgeSwitch firmware version it runs. Ubiquiti's current line is 1.12, and older units upgrade for free.
03VLANs: If you load a lite build, keep your VLAN count at 255 or fewer. The standard build allows up to 4093.
04Routing: Plan your lab around static routes only. The datasheet allows 16 routes across 15 routing interfaces.
05SFP modules: Check the photos for SFP modules if you need fiber. The two SFP ports take 1G modules.
06Rack brackets: Look for the rack brackets in the photos. Ubiquiti ships them with screws and cage nuts.
07Console: Use an RJ45-to-DB9 rollover cable on the console port at 115200, 8N1. You should get the EdgeSwitch CLI prompt.
08Reset: On arrival, hold reset about 15 seconds once it's booted. The system LED flashing blue for two seconds means it's back to defaults.
09Login: Browse to 192.168.1.2 if DHCP doesn't give it an address, and log in with ubnt and ubnt. You should land in the EdgeSwitch web UI.

Buying your first used switch or router? How to check used network gear covers the console, a factory reset, power supplies and optics, and our noise and power guide covers what fans and power draw mean at home.

Buying guide

Which one to buy

§ Oct 15, 2026

We'd buy rebelbout's ES-24-Lite titled tested at $90 with free shipping, under the $106 median. There are at least 43 for sale and most ask $85–200 delivered, with plain untested units from $75. It has no PoE, so titles calling it PoE or PoE+ are wrong, and if you need PoE the ES-24-250W and ES-24-500W are the models to look for. Nothing ties it to the last owner beyond the config, which a 15-second reset clears, and you'll want an RJ45 rollover cable for the console at 115200 8N1 if you plan to use the CLI. Skip bluetooth17's ask at $528 delivered, about 5 times the median for the same switch.

Listed now: 43
For parts: 0
Typical ask: $85–$200
Full range: $39–$500

Cheapest
$75.00est. delivered
The lowest delivered ES-24-Lite, and the photo shows its ES-24-Lite label. It's titled No Ears and makes no test claim, so budget for rack brackets if it's going in a rack and plan on a 15-second reset when it arrives.
Ubiquiti Edgeswitch ES-24-LITE 24-Port Gigabit Managed Switch - No Ears
View on eBay ↗: Ubiquiti Edgeswitch ES-24-LITE 24-Port Gigabit Managed Switch - No Ears$75.00 est. delivered
Best value
$89.99delivered
Titled tested with free shipping, under the $106 median. The photo shows only the ports, so ask whether the power cord and rack brackets come with it.
Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch Tested
View on eBay ↗: Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch Tested$89.99 delivered

Delivered prices include shipping as eBay quoted it to a US address on Oct 15, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.

Snapshot

For sale on eBay

8 of 43 listed

Checked Oct 15, 2026. Some may have sold.

Delivered prices include shipping as eBay quoted it to a US address on Oct 15, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.

Used
- Cheapest
Ubiquiti Edgeswitch ES-24-LITE 24-Port Gigabit Managed Switch - No Ears
$75.00est. delivered
$60.00 + $15.00 shipping
Buy It Now$60.00
Good buy
Titled No Ears. Photo shows the ES-24-Lite label. Not titled tested.
Seller: mike.dh.mount
100% positive
View on eBay ↗: Ubiquiti Edgeswitch ES-24-LITE 24-Port Gigabit Managed Switch - No Ears
Used
- Best value
Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch Tested
$89.99delivered
$89.99 · free shipping
Buy It Now$89.99
Offers accepted
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
Titled tested, free shipping. Photo shows the ports only.
Seller: rebelbout
100% positive
View on eBay ↗: Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch Tested
Used
Ubiquiti Networks Edgeswitch24 Lite 24-Port Gigabit PoE+ Managed Network Switch
$90.98est. delivered
$84.99 + $5.99 shipping
Buy It Now$84.99
Our take
Titled PoE+, which the ES-24-Lite doesn't have. Check the label before you buy.
Seller: nexgen-electronics
100% positive
View on eBay ↗: Ubiquiti Networks Edgeswitch24 Lite 24-Port Gigabit PoE+ Managed Network Switch
Used

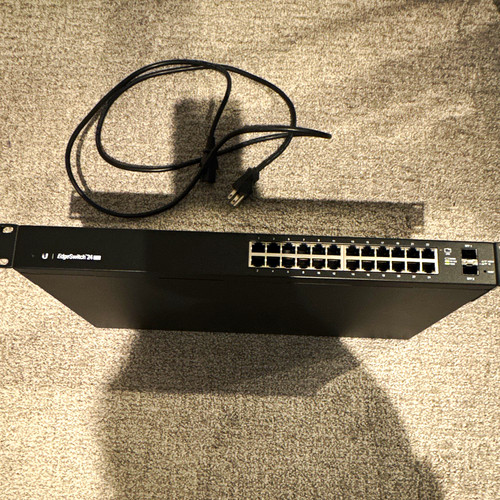

Ubiquiti Networks EdgeSwitch 24 Lite 24-Port Gigabit Managed Rackmount SFP
$103.89est. delivered
$74.99 + $28.90 shipping
Buy It Now$74.99
Our take
Titled rackmount with SFP. Photo shows a power cord. Not titled tested.
Seller: imbatgirl
100% positive
View on eBay ↗: Ubiquiti Networks EdgeSwitch 24 Lite 24-Port Gigabit Managed Rackmount SFP
Used

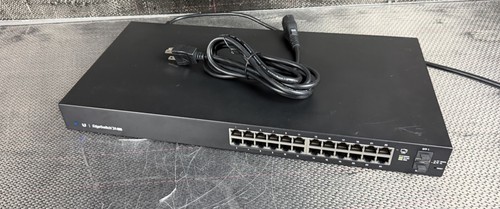

Ubiquiti Networks ES-24-LITE 24 Port Ethernet Switch *Guaranteed* Ships Fast
$108.00delivered
$108.00 · free shipping
Buy It Now$108.00
Our take
Titled guaranteed, free shipping. Photo shows a power cord. Not titled tested.
Seller: surplus_savant
100% positive
View on eBay ↗: Ubiquiti Networks ES-24-LITE 24 Port Ethernet Switch *Guaranteed* Ships Fast
Used
Ubiquiti Edgeswitch ES-24-lite 24-Port PoE Gigabit Network Switch
$114.99delivered
$114.99 · free shipping
Buy It Now$114.99
Offers accepted
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
Titled PoE, which the ES-24-Lite doesn't have. Check the label before you buy.
Seller: loloelectronics
99.9% positive
View on eBay ↗: Ubiquiti Edgeswitch ES-24-lite 24-Port PoE Gigabit Network Switch
Used
- Check the seller
- Priced high
Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch 2x SFP
$528.15est. delivered
$500.00 + $28.15 shipping
Buy It Now$500.00
Offers accepted
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Priced high
Same title as another seller's listing, at about 5 times the median. Photo shows rack ears.
Seller: bluetooth17
100% positive
View on eBay ↗: Ubiquiti EdgeSwitch 24 Lite ES-24-LITE 24-Port Gigabit Managed Switch 2x SFP
Used
- Check the seller
Ubiquiti ES-24-LITE EdgeSwitch 24-Port Gigabit Ethernet Switch w/ Rack Ears +BOX
$143.40+ shipping
$143.40 · shipping not stated
Buy It Now$143.40
Offers accepted
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Check the seller
Titled with rack ears and box, from Canada, but the photo is a stock graphic. No shipping quoted; ask.
Seller: ultratech99
100% positive
View on eBay ↗: Ubiquiti ES-24-LITE EdgeSwitch 24-Port Gigabit Ethernet Switch w/ Rack Ears +BOX

Prices change daily. The live eBay search shows everything listed now, including anything new since Oct 15, 2026.

See every listing on eBay ↗eBay search
